Sharing Settings

In Stimulsoft Server, you can provide remote access to view a report or dashboard, and download them after converting them to other file types. This can be done using the Share command. Access settings are configured in the Access menu.



This chapter will cover the following:

strel11 Share menu;

strel11 Embedding the access code to an item in the HTML page;

strel11 Parameters in URL.



To open the Share menu, you should:

strel11 Select the report or dashboard element in the list of server items;

strel11 Click the Share button on the server toolbar.





Share menu

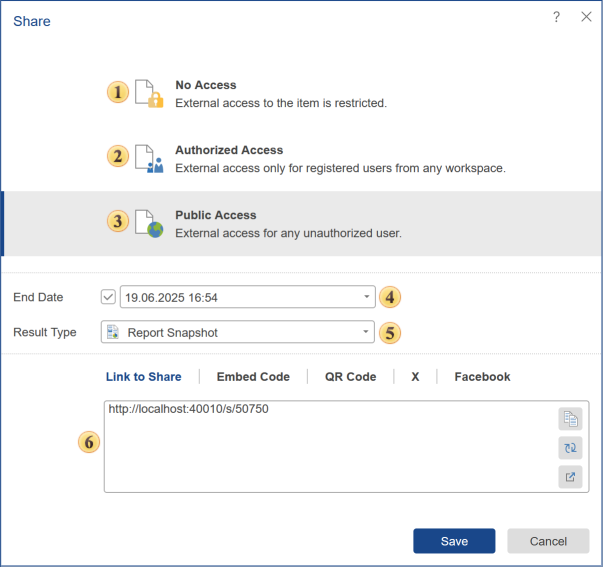

You can specify share settings of the report or dashboard in this menu.



public_access



img_1 The first mode sets the access only to users of the workspace. In other words, only users of the workspace will have access to this item.

img_2 In this mode, access to the item will have all the registered users on the server, regardless of whether they belong to a particular workspace.



Information



Regardless of the access to the item (No Access Share or Authorized Access), it is necessary to take into account the rights of the user roles. For example, if the user does not have the right to view the report item (not allowed in the settings of the role), when setting the level of access No Access Share or Authorized Access, the user will still be able to view the item.





img_3 With this mode, there are no restrictions on the access level. The item will be public for any non-authorized user. In other words, everyone who has the link to this item can view it.

img_4 This parameter sets the time and date after which access will be closed. If this option is disabled, then there is no period of access, access is always enabled.

img_5 The Result Type parameter allows you to select the file type to which the report or dashboard will be converted.

img_6 The link to access an item can be provided in the following ways:

strel11 Link to Share. Get only a link to this item.

strel11 Embed Code. Get the code for the HTML page with the link to this item.

strel11 QR Code. Display the QR code. When reading this code, you will automatically get a link to access the item.





Embedding the access code to an item in the HTML page

The item to which it is possible to adjust the level of access can also be embedded into the HTML page. This requires the following conditions:

strel11 The report server must be deployed on any web server.

strel11 Access level of the item must Public Access.



Step 1: You should select an element in the list of Stimulsoft Server elements. Let's say, a report.

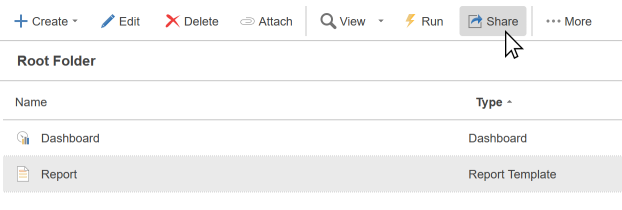

Step 2: Select the Share item on the toolbar.



button_share



Step 3: Define access settings. Set public access and, if necessary, set the End parameter value.

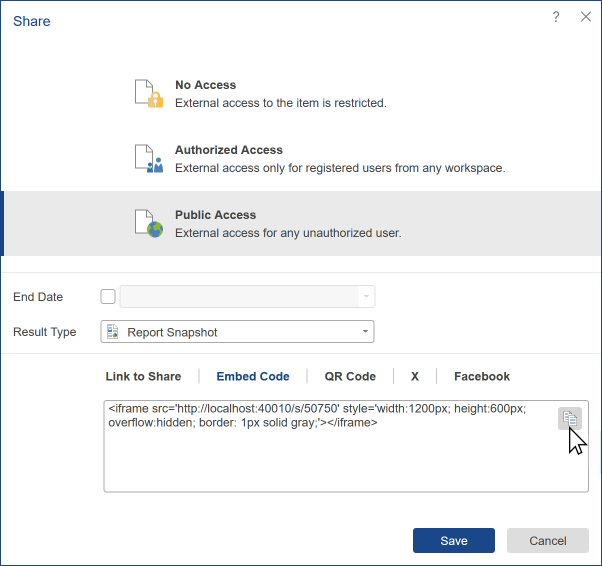

Step 4: Go to the Embed Code tab.



Step 5: Copy the access code.



embed_code

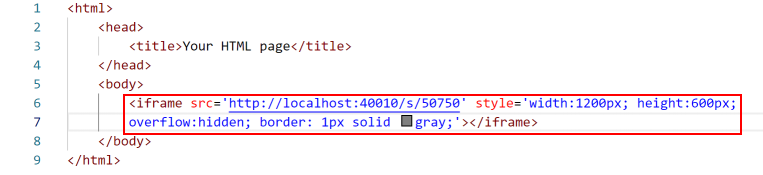

Step 6: Open the html page with any editor and paste the code. For example, let's open the html page with notepad:



code



Step 7: Save changes.



Step 8: Open the html page in the browser.







Parameters in URL

Users can view reports depending on the access level. For example, a report can view any or only authorized users. However, the report parameters can be used. In this case, the transfer of parameters goes via the URL. To do this, you must specify the special character "?" at the end of the URL. After this character, the name of the parameter and its value is specified. If you want to specify several options, they should be written with a separator "&". Consider an example of passing parameters to the report through a URL. Below is a report template.







In the first and the last text component, you can find references to a variable - Name and CategoryID. The default values for these variables are Chai and 1, respectively. In the text component in the middle of the page, you can see the expression with the keyword this and the parameter UnitPrice. Below is the rendered report.







As can be seen from the picture above, the default values were passed to the report. At the same time, UnitPrice did not keep any value and, therefore, it is not present in the rendered report. Let's pass parameters via URL.



strel11 The access link to an item - http://localhost:40010/s/5fc3c.

strel11 For the parameter Name the value will be Coffee;

strel11 For parameter UnitPrice - 15;

strel11 For the parameter CategoryID - 3.



Then the URL with parameters will look like this http://localhost:40010/s/5fc3c?Name=Coffee&UnitPrice=15&CategoryID=3. Below is a report with the passed parameters.
